CPU scheduling is a fundamental part of a hard real-time operating system (RTOS). The scheduler determines which task executes, when a running task can be interrupted, and how processor time is distributed among competing workloads.

In hard real-time systems, the primary objective is to ensure that critical tasks complete within their required deadlines. Efficient processor utilization is also important, but predictable timing and bounded response latency take precedence over maximizing average throughput.

This article compares the CPU scheduling mechanisms of VxWorks and LynxOS, focusing on priority-based preemption, scheduling policies for equal-priority tasks, kernel-thread execution, synchronization, and priority inversion.

The LynxOS discussion is based on version 4.2, with the assumption that its core scheduling model is conceptually similar to version 4.0. The VxWorks discussion follows the task and scheduling model described in the original comparison. Specific behavior should be verified against the exact OS release and configuration used in a project.

For additional background, see the VxWorks and LynxOS CPU scheduling comparison and the VxWorks RTOS architecture, task scheduling, and IPC guide.

🎯 CPU Scheduling Requirements in Hard Real-Time Systems

#

A real-time scheduler must balance several competing requirements.

The most important is deadline compliance: a task must finish its time-critical work before its deadline. The scheduler must therefore provide sufficiently predictable task activation, preemption, synchronization, and resource access.

Other important requirements include:

• Priority enforcement: More critical tasks must receive processor time ahead of less critical work.
• Low dispatch latency: A task that becomes ready should begin executing without excessive delay.
• Controlled preemption: Higher-priority work must be able to interrupt lower-priority work when necessary.
• Fairness among equal-priority tasks: Tasks sharing a priority level need an appropriate processor-allocation policy.
• Efficient synchronization: Shared resources must be protected without creating unacceptable blocking.
• Predictable interrupt handling: Interrupt processing must not introduce excessive delays for critical tasks.

Both VxWorks and LynxOS use priority-based preemptive scheduling as the foundation of their real-time execution models. Their differences become more apparent in how they schedule equal-priority tasks, organize kernel work, and manage dependencies between tasks and device drivers.

It is important to distinguish scheduling policy from a complete real-time guarantee. A priority-based scheduler alone cannot ensure that every deadline will be met. Worst-case execution time, interrupt latency, resource contention, task priorities, and blocking behavior must also be considered.

🐧 LynxOS Scheduling Architecture

#

The scheduling details in this section refer to LynxOS 4.2.

LynxOS uses a preemptive, priority-based scheduler. When a higher-priority thread becomes ready to execute, it can preempt the currently running lower-priority thread.

For threads at the same priority, LynxOS provides three scheduling policies:

1. Round-robin
2. Quantum
3. FIFO

The policies determine how processor time is distributed among runnable threads sharing the same priority. They do not remove the scheduler’s ability to preempt lower-priority execution when higher-priority work becomes ready.

Priority Levels

#

The described LynxOS scheduler supports 512 internal priority levels:

The internal priority arrangement provides an additional level between successive user-task priorities. Even-numbered priorities are assigned to user tasks, while odd-numbered priorities are used for kernel threads.

A user-task priority \(p\) maps to an internal priority using:

This organization supports LynxOS’s priority-tracking mechanism, discussed later in this article.

Round-Robin Scheduling

#

Round-robin scheduling distributes processor time among runnable threads at the same priority.

Each thread receives a time slice. When the slice expires, the scheduler allows another eligible thread in the same priority group to execute.

The scheduling cycle can be represented as:

• Thread A executes during its time slice.
• Its slice expires while it remains runnable.
• Thread B receives processor time.
• Other runnable threads at that priority receive their turns.
• Thread A eventually receives another time slice.

This prevents one continuously runnable thread from monopolizing the CPU when multiple threads share the same priority and round-robin scheduling is enabled.

Higher-priority threads can still preempt the group whenever they become ready.

Quantum Scheduling

#

LynxOS also provides a Quantum policy.

It resembles round-robin scheduling, but the processor-allocation interval can vary by priority level rather than using one fixed time slice for every priority.

This allows processor-sharing behavior to be configured according to the needs of different groups of threads.

The distinction is useful when workloads at different priority levels require different scheduling intervals, although the effect on a particular application must be evaluated using its timing requirements and system configuration.

FIFO Scheduling

#

Under FIFO scheduling, runnable threads at the same priority follow a first-in, first-out ordering.

A thread normally continues executing until it blocks, yields, completes its execution, or is otherwise removed from the runnable state. A higher-priority thread can still preempt it.

Compared with round-robin, FIFO does not automatically rotate continuously runnable threads after a fixed time slice. It can therefore be suitable when the application is designed around cooperative execution or when tasks at the same priority have specific execution patterns.

The trade-off is that a thread that remains runnable for a long time can delay other equal-priority threads.

⚡ Kernel Threads and Interrupt Processing in LynxOS

#

LynxOS schedules user tasks and kernel threads within its priority-based scheduling model.

Kernel threads commonly perform work associated with device drivers and other kernel services. This provides an important distinction between immediate interrupt processing and the larger body of work triggered by an interrupt.

Interrupt handlers need to respond quickly because prolonged execution at interrupt level can delay other interrupts and interfere with real-time responsiveness.

A useful design is to keep the interrupt handler short and defer less urgent processing to a kernel thread.

The general execution flow is:

1. A hardware interrupt occurs.
2. The interrupt handler captures essential status or data.
3. The handler schedules or signals deferred processing.
4. A kernel thread performs the remaining work.
5. The scheduler determines when that thread executes according to its priority and scheduling rules.

This design can reduce the amount of work performed directly in interrupt context.

It is particularly important when a device interrupt is associated with a lower-priority application. Without appropriate separation, lengthy interrupt processing could consume processor time needed by more critical tasks.

Priority Tracking

#

LynxOS uses a mechanism described as priority tracking to address dependencies between user tasks and kernel threads.

Consider a high-priority application task that needs a service provided by a device driver. If the kernel thread responsible for that service has insufficient priority, the application may have to wait even though the required device operation is essential to its progress.

Priority tracking dynamically adjusts the priority of relevant kernel threads so that they can run ahead of the highest-priority user task waiting for their work.

The 512-level internal priority arrangement supports this behavior by providing an additional kernel-thread priority between user-task priority levels.

Conceptually:

The purpose is to reduce delays caused by mismatches between application priorities and the priorities of the kernel work on which those applications depend.

🔒 Synchronization and Priority Inversion in LynxOS

#

A real-time scheduler must coordinate tasks that share data structures, devices, and other resources.

LynxOS uses mechanisms including semaphores, interrupt control, and preemption control to protect shared resources and coordinate execution.

Semaphores

#

A semaphore can protect a resource by allowing only one eligible task to access a protected region at a time.

When several tasks are waiting for the semaphore, the scheduling and queueing policy determines which waiting task proceeds after the resource becomes available.

Semaphores provide a flexible synchronization mechanism, but they introduce blocking: a task cannot proceed until the required resource becomes available.

Priority Inversion

#

Priority inversion occurs when a high-priority task must wait for a resource held by a lower-priority task.

The problem can become more serious when an intermediate-priority task repeatedly preempts the low-priority task, preventing it from releasing the resource needed by the high-priority task.

For example:

1. A low-priority task acquires a shared resource.
2. A high-priority task becomes ready and attempts to acquire that resource.
3. The high-priority task blocks because the low-priority task still holds the resource.
4. An unrelated medium-priority task preempts the low-priority task.
5. The high-priority task remains blocked until the resource is released.

Although the high-priority task should normally receive processor time first, the resource dependency prevents it from proceeding.

Priority Inheritance

#

Priority inheritance addresses this problem by temporarily raising the resource-owning task’s priority when a higher-priority task is blocked by it.

The low-priority task can then run sooner, release the resource, and allow the high-priority task to continue.

The original comparison discusses priority inheritance alongside LynxOS synchronization. Exact behavior depends on the synchronization primitive and the operating-system configuration, so the relevant LynxOS documentation should be consulted when designing a deadline-critical resource protocol.

Disabling Interrupts and Preemption

#

The original LynxOS discussion also identifies interrupt control and preemption control as mechanisms for protecting critical sections.

Temporarily preventing certain forms of interruption can make a small critical section execute atomically with respect to the protected activities.

However, these mechanisms should be used carefully. Disabling interrupts increases interrupt latency, while disabling preemption can delay other ready tasks. Long critical sections are especially problematic in a hard real-time system because they can create substantial and difficult-to-bound blocking.

Deadlock Prevention

#

Using multiple semaphores can create deadlocks when tasks acquire resources in inconsistent orders.

For example, one task might hold resource A while waiting for resource B, while another holds resource B and waits for resource A.

The approach described in the original LynxOS comparison relies on a consistent semaphore-acquisition order rather than general deadlock detection and recovery.

Under this strategy, software must enforce a global resource-ordering convention. It avoids the runtime overhead of a general detection mechanism, but it places responsibility on developers to design and verify deadlock-free resource access.

🌀 VxWorks Scheduling Architecture

#

VxWorks is built around the Wind kernel, which provides task management, priority-based scheduling, interrupt handling, synchronization, and other core real-time services.

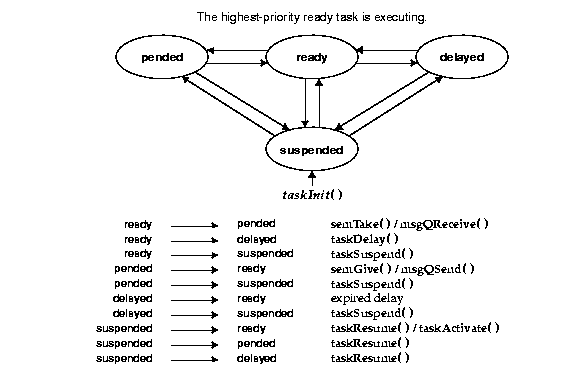

In VxWorks terminology, the basic scheduled execution unit is called a task. The task model described in the original comparison includes four states:

• READY: The task can execute but is waiting for processor time.
• PEND: The task is waiting for an event or resource.
• DELAY: The task is waiting for a time delay to expire.
• SUSPEND: The task has been explicitly suspended.

The transitions between these states determine when a task becomes eligible to execute.

Priority Levels

#

The VxWorks scheduling model described here provides 256 task-priority levels.

VxWorks uses priority-based preemptive scheduling. When a higher-priority task becomes ready, it can preempt a lower-priority task that is currently running.

This is central to real-time applications in which control loops, time-sensitive I/O, and other critical activities must not be delayed unnecessarily by less critical work.

Default Scheduling Among Equal-Priority Tasks

#

When multiple tasks share the same priority and round-robin scheduling is not enabled, they generally follow the scheduler’s ready-queue ordering rather than automatically rotating through fixed time slices.

When round-robin scheduling is enabled, eligible tasks at the same priority share the processor using time slicing.

The higher-priority preemption rule remains in effect: round-robin scheduling changes how equal-priority tasks share CPU time, not the priority relationship between different levels.

Round-Robin Scheduling

#

VxWorks provides optional round-robin scheduling for tasks at the same priority.

A time slice determines how long an eligible task can use the CPU before another ready task at that priority is given a turn.

A typical sequence is:

1. Task A begins executing.
2. Its time slice expires while it remains ready to run.
3. Task A moves to the back of the equal-priority ready queue.
4. Task B executes during its turn.
5. The scheduler continues rotating among runnable tasks at that priority.

If a higher-priority task preempts Task A before its slice expires, VxWorks preserves the remaining time-slice state as required by the scheduling model, so Task A can continue later without treating the interrupted interval as a completed slice.

This allows equal-priority tasks to share processor time while preserving responsiveness to higher-priority work.

For a practical introduction to task scheduling and the kernelTimeSlice() API, see the VxWorks RTOS architecture and task scheduling guide.

Controlling Scheduler Preemption

#

VxWorks also provides mechanisms for temporarily preventing task-level preemption, including taskLock() and taskUnlock().

These mechanisms can be useful for short, bounded critical sections in which task switching must be controlled.

However, locking the scheduler does not make a lengthy operation suitable for real-time execution. A task that holds the preemption lock for too long can delay other ready tasks, including tasks with higher priorities.

Interrupt handling and task-level preemption are separate concerns. Developers must understand the target’s interrupt model and avoid creating unbounded delays through either mechanism.

🔐 Synchronization and Priority Inversion in VxWorks

#

VxWorks provides several synchronization mechanisms for real-time applications, including semaphores, interrupt locks, and preemption control.

Semaphores are particularly important because they support both inter-task coordination and protection of shared resources.

Semaphore Types

#

VxWorks offers multiple semaphore types, including:

The appropriate type depends on the application.

A binary semaphore can be useful when an interrupt handler needs to signal a task that an event has occurred. A mutual-exclusion semaphore is better suited to controlling access to a shared resource.

Priority Inheritance

#

Mutual-exclusion semaphores can support priority inheritance to mitigate priority inversion.

When a higher-priority task blocks on a resource held by a lower-priority task, the resource owner can inherit a higher priority temporarily. This allows it to complete the critical section and release the resource sooner.

Priority inheritance reduces one important source of unpredictable blocking, but it does not eliminate every possible scheduling delay. Resource chains, nested locks, interrupt activity, and application-level dependencies still require careful design.

For more information on VxWorks synchronization, semaphore selection, and task coordination, see the essential VxWorks RTOS functions guide.

⚖️ VxWorks vs. LynxOS: Scheduling Comparison

#

The two operating systems share the same fundamental scheduling principle: priority-based preemption.

Their principal differences in the original comparison concern equal-priority scheduling policies, internal priority organization, and the treatment of kernel work.

The difference in priority counts should not be interpreted as evidence that one scheduler is inherently better. LynxOS’s 512 internal levels include extra levels for kernel-thread priority tracking, while the VxWorks model described here uses 256 task priorities.

Likewise, offering more equal-priority policies does not automatically produce better deadline guarantees. The appropriate policy depends on the task workload and the way the system is designed.

🔍 Similarities Between VxWorks and LynxOS

#

Several design choices are shared by both operating systems.

Priority-Based Preemption

#

Both schedulers allow higher-priority runnable work to interrupt lower-priority execution.

This is a natural choice for hard real-time systems because it lets developers express the relative urgency of tasks and configure the scheduler around those priorities.

Round-Robin Scheduling

#

Both systems support round-robin scheduling for tasks of equal priority.

This provides a mechanism for preventing one continuously runnable task from monopolizing the CPU when several tasks at the same priority need processor time.

LynxOS also exposes a Quantum policy in the comparison, while VxWorks provides its own configurable round-robin time slice.

Synchronization Primitives

#

Both systems provide synchronization mechanisms for coordinating concurrent execution and protecting shared resources.

Semaphores and related mechanisms allow applications to manage access to shared data and coordinate between independently scheduled tasks.

Both systems must also address the consequences of priority inversion and deadlock.

Predictable Real-Time Execution

#

Both designs are based on explicit task priorities and controlled scheduling behavior.

The intended benefit is a system in which developers can reason about which task should execute, when a task can be interrupted, and what synchronization dependencies can delay time-critical work.

Achieving this in practice still requires appropriate priority assignments, bounded critical sections, and testing under realistic workloads.

🆚 Key Differences and Their Practical Impact

#

The most visible difference in the source comparison is that LynxOS provides three named policies for equal-priority threads, whereas the VxWorks model described here focuses on its normal scheduling behavior and optional round-robin time slicing.

LynxOS’s Quantum policy additionally allows the scheduling interval to vary by priority level.

The other notable difference is the treatment of kernel work. LynxOS uses an internal priority arrangement that supports priority tracking between user tasks and kernel threads. VxWorks relies on its task-scheduling and synchronization mechanisms, including priority inheritance for appropriate mutual-exclusion semaphores.

These differences matter most when the application has specific constraints around:

• Device-driver execution and interrupt processing
• Equal-priority workloads
• Shared-resource blocking
• Task responsiveness under heavy CPU load
• Synchronization between application and kernel work

A project should evaluate these behaviors using the exact operating-system release and configuration being considered. The scheduling model alone does not determine the overall quality, safety, or suitability of an RTOS.

🧪 Choosing an RTOS for a Hard Real-Time Project

#

When deciding between VxWorks and LynxOS, CPU scheduling is only one part of the technical evaluation.

Engineers should also examine the application’s workload and the operating-system services needed to meet its deadlines.

Analyze the Task Set

#

For each critical task, identify:

• Execution period or minimum inter-arrival time
• Worst-case execution time
• Relative priority
• Deadline
• Required resources
• Blocking dependencies

This information helps establish whether the system can meet its timing requirements under realistic worst-case conditions.

Evaluate Blocking and Interrupt Latency

#

A high-priority task can still miss its deadline if it spends too long waiting for a shared resource or if interrupt processing delays its execution.

Measure the complete response path, including scheduling latency, resource blocking, execution time, and output handling.

Test Under Contention

#

Exercise the system with multiple tasks competing for CPU time and shared resources.

Observe what happens when a high-priority task blocks on a lower-priority resource owner, when equal-priority tasks remain continuously runnable, and when interrupt activity increases.

Verify Release-Specific Behavior

#

The original comparison covers LynxOS 4.2 and a historical VxWorks task-scheduling model. Current or differently configured releases may support additional capabilities or have different implementation details.

Verify the appropriate manuals, API behavior, synchronization semantics, and platform-specific constraints before making architectural decisions.

✅ Conclusion

#

VxWorks and LynxOS share the central principles of hard real-time CPU scheduling: priority-based preemption, controlled execution among equal-priority tasks, and synchronization mechanisms for managing access to shared resources.

Their differences are relatively specific in the comparison presented here.

LynxOS 4.2 provides round-robin, Quantum, and FIFO policies for equal-priority threads, uses 512 internal priority levels, and includes priority tracking for kernel threads. VxWorks uses 256 task-priority levels in the described model and offers optional round-robin time slicing alongside priority-based preemption.

Neither approach is automatically superior for every application. The effectiveness of a scheduler depends on the task set, priority assignments, resource-access patterns, interrupt behavior, and the operating system’s actual configuration.

For engineers choosing an RTOS, the most important question is not simply which scheduler offers more policies. It is whether the complete platform can provide predictable response times and reliably meet the deadlines imposed by the application.

A rigorous evaluation should therefore combine scheduling analysis with synchronization design, worst-case timing measurements, driver testing, and system-level validation.
