This article gives introduction to managing projects from the command-line interface for VxWorks development.
Exploring the Environment #
Setting the Build Environment
Environment variables must be configured so that you can build from the workstation command line.
WIND_HOME is installation dir (installDir)
WIND_BASE is vxworks-7 (or vxworks-6) dir
From WIND_HOME:
Linux:
$ ./wrenv.sh –p vxworks-7 (or vxworks-6)
OR to preserve existing bash shell:
$ eval `./wrenv.sh -p vxworks-7 -o print_env -f sh
Windows:
> wrenv.exe -p vxworks-7 (or vxworks-6)
Setting the Workspace
Linux:
$ export WIND_WRTOOL_WORKSPACE=installDir/workspace
Windows:
> set WIND_WRTOOL_WORKSPACE=installDir\workspace
Exploring VxW Source Projects (VSB)
List VSB layers:
> wrtool prj vsb list vsbName
List All CPU Architectures Supported in this VxWorks Installation:
> wrtool vsb listcpus

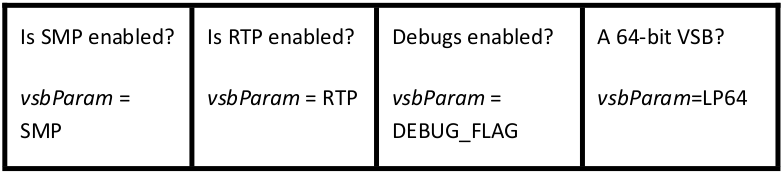

Get VSB Configuration:
> wrtool prj vsb value get vsbParam vsbName
Exploring VxW Image Projects (VIP)
Which BSP + VSB is the VIP based on?
> wrtool prj vip info vipName
Which components are included in this VIP?
> wrtool prj vip component list vipName
Where are this component’s source files?
> wrtool prj vip component info vipName componentName
What is the VIP’s default bootline?
> wrtool prj vip parameter value vipName DEFAULT_BOOT_LINE
Creating New Projects #
Create a VSB
wrtool vxprj vsb create -S -force -bsp bspName -lp64 -cpu cpuName -smp myVSB
e.g. bspName = itl_generic, cpuName = NEHALEM Add “-debug” to enable debug symbols Remove “-lp64” for 32-bit VSB
Add a VSB Layer
wrtool vxprj vsb add vsbName layerName
Build a VSB
cd myVSB; make -j 32
Create a VIP
wrtool vxprj create -smp bspName vipName -profile profileName -vsb vsbName
e.g. bspName = itl_generic, profileName = PROFILE_INTEL_GENERIC Add “-debug” to enable debug symbols
Add a VIP Component
wrtool vxprj component add vipName componentName
Add a VIP Bundle
wrtool vxprj bundle add vipName bName
e.g. bName = BUNDLE_STANDALONE_SHELL
Which bundle is added to a VIP ?
wrtool vxprj bundle list vipName
Create a downloadable kernel module (DKM)
prj dkm create -vsb vsbName dkmName
Create a real-time process (RTP)
prj rtp create -vsb vsbName rtpName
Add a File to a Project
prj file add fileName prjName
Add “-link” to link to, not copy the file
Debugging Drivers #
Exploring Exceptions
INCLUDE_EDR_ERRLOG:
STATUS edrShow (int start, int count, int facility, int severity)
From the kernel shell:
-> edrShow()
Exploring Fatal Exceptions
- Set a breakpoint in sysToMonitor().
- When target breaks, examine the CPU link register to get the calling address.
- Set a new breakpoint there and re-run.
- Keep working back till you find the problem.
Deferring Driver Startup (VxBus 2 / SR0660 and later)
INCLUDE_VXBUS_DRIVER_DEFER
List the driver names to be deferred separated by a colon (:) in VIP parameter VXBUS_DRIVER_DEFER_LIST_STR.
Manually Deferring and Initializing a Network Driver (VxBus 2)
Convert network driver from static to dynamic driver registration. For example:
- Locate VXB_DRV_DEF (VXB_DRV_structure_name) and comment line out.
- Create a new function in the driver:
void addMyEnetDrv() {
vxbDrvAdd(&VXB_DRV_structure_name);
}
- Reboot target and from the kernel shell:
-> addMyEnetDrv()
-> ipcom_drv_eth_init(“drv_name”, 0, 0)
-> ifconfig (“drv_name0 ip_address netmask net- mask up”)
VxWorks API Calls #
VxWorks Message Queue Library
INCLUDE_MSG_Q:
MSG_Q_ID msgQOpen (const char * name, size_t maxMsgs, size_t maxMsgLength, int options, int mode, void * context)
STATUS msgQClose (MSG_Q_ID msgQId)
MSG_Q_ID msgQCreate (size_t maxMsgs, size_t maxMsgLength, int options)
STATUS msgQDelete (MSG_Q_ID msgQId) ssize_t msgQNumMsgs (MSG_Q_ID msgQId)
STATUS msgQSend (MSG_Q_ID msgQId, char * buffer, size_t nBytes, _Vx_ticks_t timeout, int priority)
ssize_t msgQReceive (MSG_Q_ID msgQId, char * buffer, size_t maxNBytes, _Vx_ticks_t timeout)
STATUS msgQInfoGet (MSG_Q_ID msgQId, MSG_Q_INFO * pInfo)
VxWorks Pipe I/O Driver
INCLUDE_PIPES:
STATUS pipeDevCreate (const char * name, size_t nMessages, size_t nBytes)
STATUS pipeDevDelete (const char * name, BOOL force)
STATUS pipeAnonCreate (size_t nMessages, size_t nBytes, unsigned flags, int * pFd)
VxWorks I/O Library
int open (const char * name, int flags, ...)
int creat (const char * name, mode_t mode) int remove (const char * name)
ssize_t write (int fd, const void * buffer, size_t nbytes)
int close (int fd)
ssize_t read (int fd, void * buffer, size_t max- bytes)
int ioctl (int fd, int function, …)
VxWorks Show Routines
INCLUDE_DOSFS_SHOW:
STATUS dosFsShow (void * pDevName, u_int level)
INCLUDE_POOL_SHOW:
void poolShow (POOL_ID poolId, int level)
INCLUDE_SHOW_ROUTINES:
STATUS objShowAll (OBJ_ID objId, int showType)
INCLUDE_WATCHDOGS_SHOW:
STATUS wdShow (WDOG_ID wdId)
INCLUDE_TASK_SHOW:
STATUS taskShow (TASK_ID tid, int level)
INCLUDE_SYM_TBL_SHOW:
STATUS symShow (SYMTAB_ID pSymTbl, char * substr)
INCLUDE_STDIO_SHOW:
STATUS stdioShow (FAST_FILE * fp, int level)
INCLUDE_MODULE_MANAGER:
STATUS moduleShow (char * modNameorId, int options)
INCLUDE_MEM_SHOW:
STATUS memShow (int type)
STATUS memPartShow (PART_ID partId, int type)
INCLUDE_TASK_SHOW:
void envShow (TASK_ID taskId)
INCLUDE_MSG_Q_SHOW:
STATUS msgQShow (MSG_Q_ID msgQId, int level)
INCLUDE_POSIX_TIMER_SHOW:
Int timer_show (timer_t timerId, int verbose)
INCLUDE_SEM_SHOW:
STATUS semShow (SEM_ID semid, int level)
INCLUDE_HW_FP_SHOW:
void fppCtxShow (FP_CONTEXT * pFpContext)
INCLUDE_EDR_SHOW:
STATUS memEdrPartShow (PART_ID partId)
INCLUDE_VM_SHOW:
STATUS vmContextShow (VM_CONTEXT_ID context)
INCLUDE_VXBUS_SHOW:
void vxbDevShow (VXB_DEV_ID pRoot, int toggle)
void vxbDrvShow (void)
INCLUDE_PCI_SHOW:
void vxbPciCtrlShow (void)
STATUS vxbPciDeviceShow (VXB_DEV_ID busCtrlID, UINT8 busNo)
void vxbPciTopoShow (VXB_DEV_ID busCtrlID)
STATUS vxbPciFuncShow (VXB_DEV_ID busCtrlID, UINT8 bus, UINT8 device, UINT8 function)
VxWorks Logging and kprintf Library
INCLUDE_LOGGING:
int logmsg (char * fmt, _Vx_usr_arg_t arg1,
_Vx_usr_arg_t arg2, _Vx_usr_arg_t arg3,
_Vx_usr_arg_t arg4, _Vx_usr_arg_t arg5,
_Vx_usr_arg_t arg6)
INCLUDE_DEBUG_KPRINTF:
int kprintf (const char * fmt, ...)
ssize_t kputs (char * buffer)
VxWorks Events Library
INCLUDE_VXEVENTS:
STATUS eventClear (void)
STATUS eventReceiveEx (UINT32 events, UINT32 options, _Vx_ticks_t timeout, UINT32 * pEventsReceived)
STATUS eventReceive (UINT32 events, UINT8 options, _Vx_ticks_t timeout, UINT32 * pEventsReceived)
STATUS eventSend (TASK_ID taskId, UINT32 events)
VxWorks Semaphore Library
INCLUDE_SEM_LIB:
SEM_ID semBCreate (int options, SEM_B_STATE ini- tialState)
SEM_ID semCCreate (int options, int initialCount) SEM_ID semMCreate (int options)
SEM_ID semOpen (const char * name, SEM_TYPE type, int initState, int options, int mode, void * con- text)
STATUS semClose (SEM_ID semId)
STATUS semDelete (SEM_ID semId)
STATUS semFlush (SEM_ID semId)
STATUS semGive (SEM_ID semId)
STATUS semTake (SEM_ID semId, _Vx_ticks_t timeout)
